Coating equipment solutions coating spray machine cookware spray painting line

Coating equipment solutions coating spray machine cookware spray painting line The pre-treatment combined washing machine has six spray sections, which are mainly composed of various process tanks, tank liquid circulation spray system, bath liquid heating system, closed shed body, exhaust system, and pipeline system. A total of six treatment processes are adopted and spray treatment is adopted. After the pretreatment, the cleanliness meets customer’s existing spraying line requirements. The overall structure of the device is beautiful and generous, and will not drip or leak. The countercurrent rinsing process is adopted at multiple washing steps to save water consumption and ensure the cleaning quality of the workpiece. The liquid supply tank adopts a main and auxiliary tank structure, and a double metal filter is arranged between the main and auxiliary tanks to remove impurities in the tank fluid and reduce nozzle clogging.

Category:

Technology at home and abroad

Quality assurance

Tailored

Original purchase

Get quote

Product Details

Commodity name: Coating equipment solutions coating spray machine cookware spray painting line
Commodity ID: 1049256561836122112

Cookware coating machine painiting equipment powder coating line

Cookware automatic production line

item	Pan, pressure cooker, soup pot
material	Iron parts, aluminum parts, composite material
standard workpiece	*240150mm**
pitch of conveyor belt	450mm
conveyor belt speed	2500mm/min
energy	Power/natural gas
hanging quantity of conveyor belt	4pcs/hang
workpiece transferring method	A djustable
quality management system	ISO9001:2015
environmental protection management system	ISO14001:2015

Note: above data for reference only, the actual data will be calculated according to customer required.

Why did you choose us?

1. We are customized design based on the whole powder coating system and electrostatic powder coating unit.

2. Our engineer available to oversea to install the project.

3. Offer a free training for equipment operation

4. Payment with FOB or CNF or CIF

5. Warmly welcome to visit anytime

6. Any new idea for your product, workshop and related drawing please sharing with us. We will offer a customized project service to you.

Our cookware spraying system apply with widely non-stick pan, pan , kettle, iron plate, rice cooker manufacturing industry.

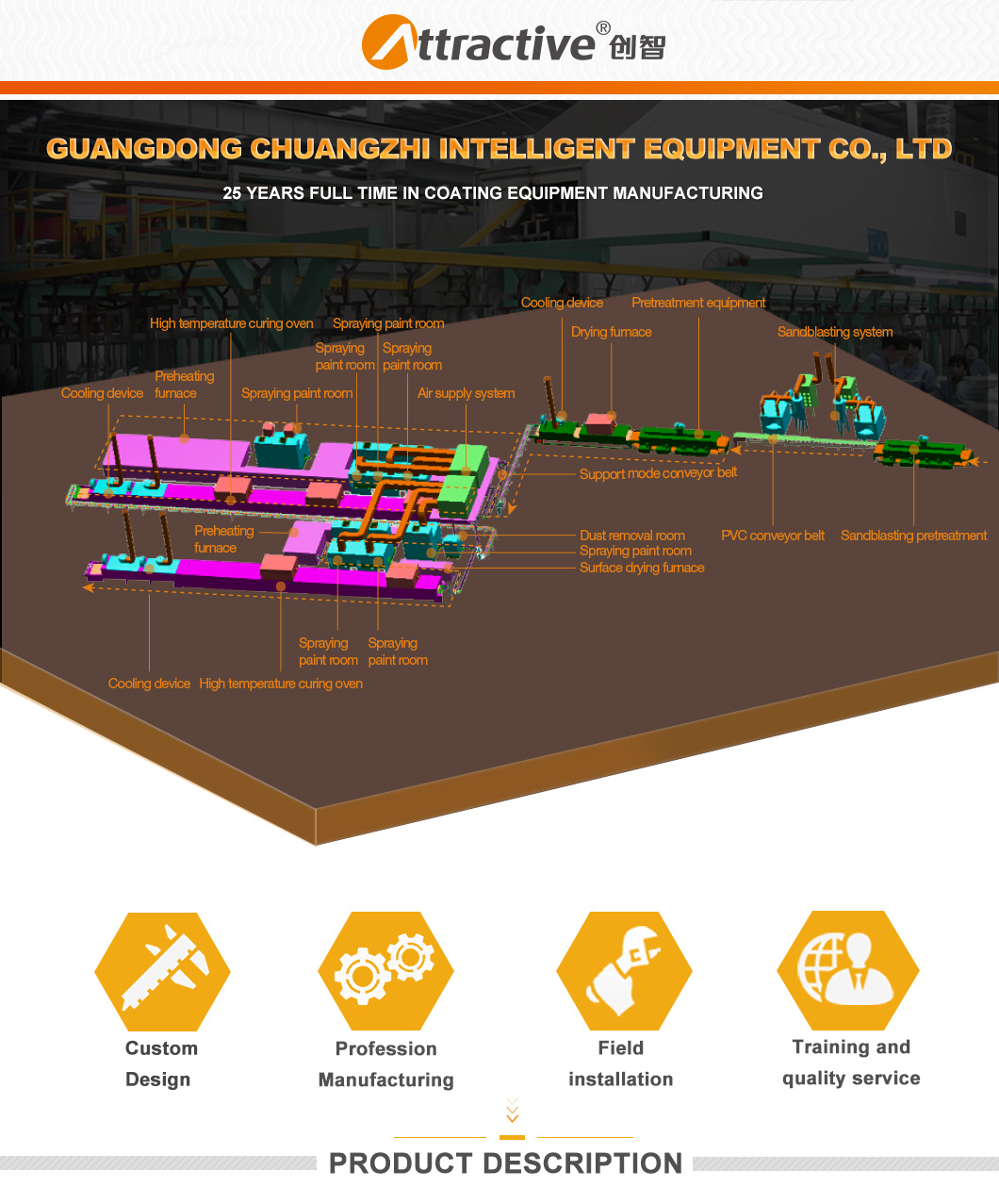

Consist of coating system

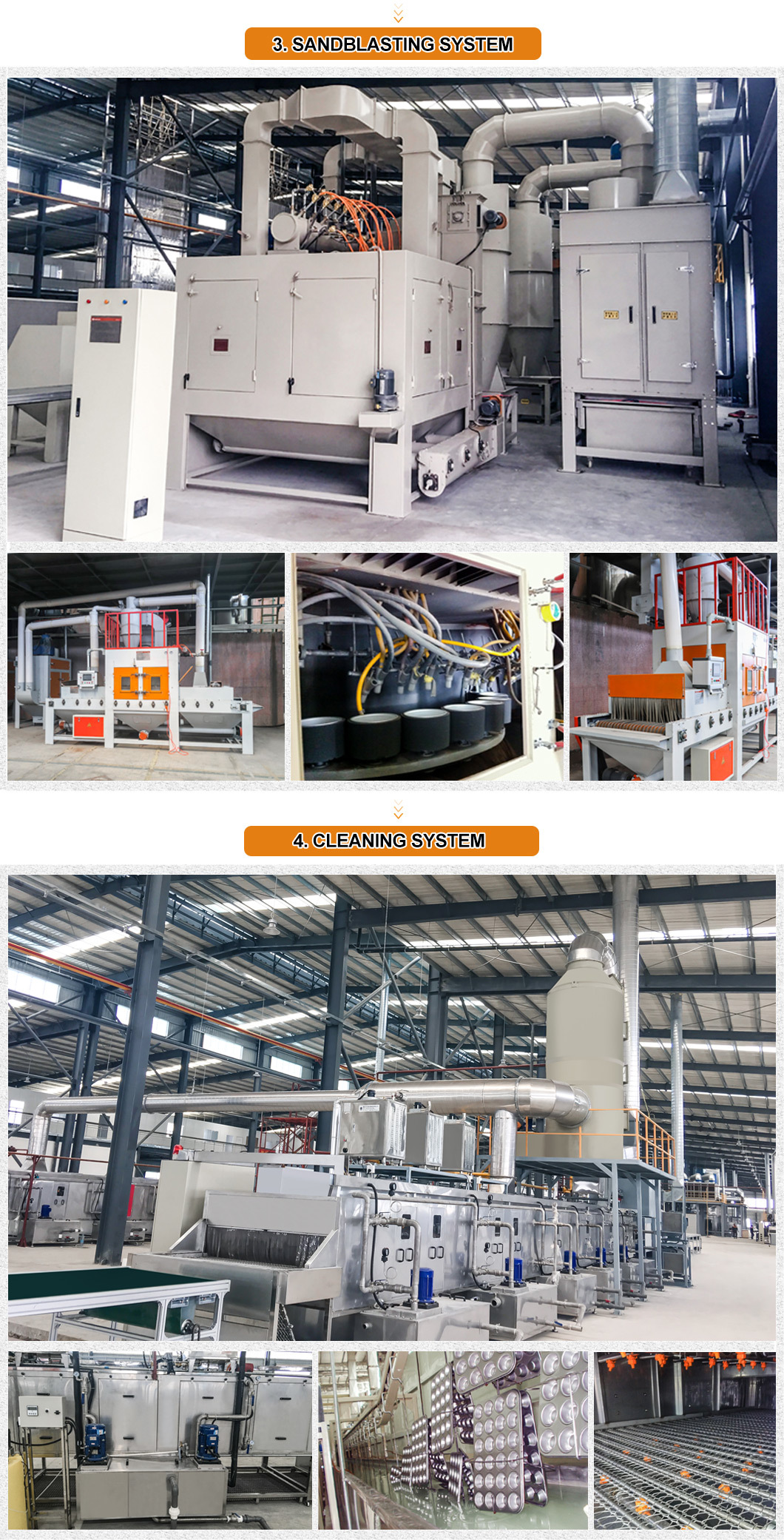

1. Mist spray pretreatment system

The general pretreatment as following :degrease→rinse→acid washing to dust removal→surface treatment →anoidizing →water washing →deactivation →rinse→drying

Function :removing the degrease, dust, rust on the surface of workpiece, and produce a layer Corrosion resistance, adding the adhesion of coating .

2. Powder spray system

Function :powder spray evenly to the workpiece surface, the particular workpiece (including workpiece which easily produce electrostatic shield position) should be sprayed by a high performance electrostatic spraying machine.

Spraying process: using the electrostatic adsorption principle, a evenly powder coating on the workpiece surface, powder collected by a recycle system, then screening and separation to be reused.

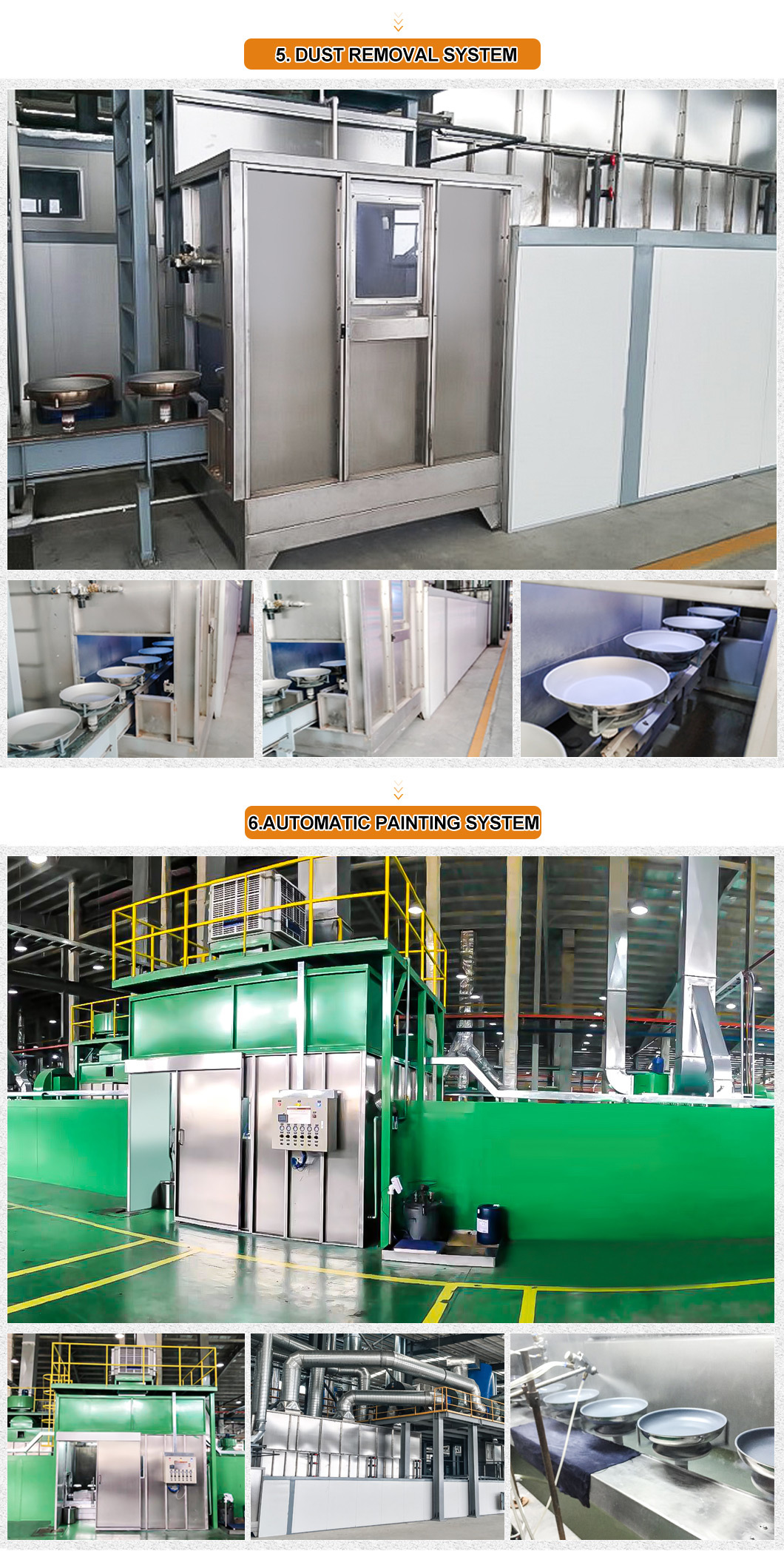

3. spraying system

Spraying system consist of manual and robot spraying .

Function :Chuangzhi paint spraying utilize oil spraying chamber, water curtain spraying chamber and robot spraying chamber.

Feature : Identified workpiece by color lens, with high efficiency identification to classify product. Insert the product information to processor (PLC, robot) to analyze and classify related process. With a high recognition rate, it is available for multiple product mixing production .

Nowadays, robot spraying have became a trend in manufacturing development. Its advantage as following:

A. Robot spraying and transferring system can reduce labor cost, realize industry automatic production .

B. Reduce safety accident, improve

C. The general robot with 6 axis, suitable with the standard related connection action with more than 6 axis, achieve high difficulty and required operation .

4. high temperature curing

Function :heating the powder which on the surface of workpiece to a regulated temperature and timing, then perform melting , levelling and curing to achieve our required standard.

5. Heat source system

Function :we are available to supply natural gas, electricity, biologic pellet fuel etc based on clients" actual condition . Quickly improve the temperature efficiency, matched with curing oven which adjustable and stable temperature, to achieve improve the product quality.

6. Electronic control systems

Function :the controller installed nearby the equipment, easily to repair and maintenance, perform a central display, a stable operation .

Feature : the equipment available to connect network or utilize 4G telephone card, perform remote data collecting, intelligent monitor, realize industry 4.0.
remote equipment maintenance and operation monitor, data transmit by internet, data collecting and related statement prepare by IPC.

7. Conveyor system

We will design according to workpiece details and clients" required, including plate type conveyor, chain type conveyor, overhead type conveyor etc.

Above display our package and shipment. Due to we are a provider for whole painting system which including a series of huge equipment and product, so we need to transport by truck, loading at port, shipment by sea.

1.How to purchase?

Please describe the workpiece details to us, like dimension and the
painting required etc, we will make out a appropriate painting system and equipment installation proposal to comply with your required.

2. Supporting service

We will offer the whole plant design proposal freely before place order. We are welcome customer visiting the coating line onsite anytime. We will prepare the detailed technology proposal after get approval between customer and manufacturer. Further we will share information about paint and dedust etc to you.

3. Quotation

The price showing on website is not the real because vary item
with different price. The final quotation based on two side (customer and manufacturer) confirmed the technology project afterwards.

4. Payment term

The stock & small and middle-sized machine & large equipment & whole coating system deposit by 40%, the qualified machine before shipping should pay 50% , after installation and training should settle up balance.Actually the payment term can be negotiated according to different situation.

5. Production cycle

We are a professional manufacturer of providing the non-standard coating system. Ensure providing a qualified product and service, we are setting the production cycle is 60 working days. The actually lead time depends on the recent actually production planning.

6. Package

The default packing for domestic and overseas shipment is with a white color protective film. The export shipment packing would be customized fumigation-free wooden pallet or wooden box.

7. Express & shipping

Customer can use their own logistic. Otherwise, we will use our long-term cooperation logistic to conduct transport including loading and unloading.The export shipment normally by sea.

8. Installation and training

Customer can arrange staff come to our company receive training if possible. Once the complete coating line start building, we will assign related technician come to onsite to proceed with until trial production completed. Also , we are pleasure to share information of maintain and technologic if necessary.

9.After-sales service

The main parts of coating system warranty 1 year. Other parts damaged by people or consumable spare parts out of warranty. We are offering full life maintain service and 24 hours online service. The overseas project install charge or occurring related fee should be bear by customer.

Please submit your information as below:

1. What is the size and weigh for your workpiece? Please share the photos with us if possible.

2. How much spraying working time per day?

3. What about your plant size(L * W * H)?

4. What about the frequency of change powder color?

5. How about the heat resource? Natural gas, electricity, biologic pellet fuel?
