5 Key Stages in a Modern Car Wheel Powder Coating Process
Author：
Chuangzhi Coating
As components that bear high-frequency stress and are exposed for a long time, car wheels have extremely high requirements for coating salt spray resistance, impact resistance, and weather resistance. Powder coating has become the mainstream process for modern car wheel coating due to its advantages such as zero VOC emissions, high material utilization rate (≥95%), and excellent coating performance. A complete car wheel powder coating process is not a single spraying link, but a closed-loop system consisting of 5 key stages: "pretreatment - powder spraying - powder recycling - curing - quality inspection". As a professional manufacturer of coating line equipment, we deeply analyze the process core and equipment adaptation scheme of each stage to help enterprises realize standardized and efficient wheel powder coating production.

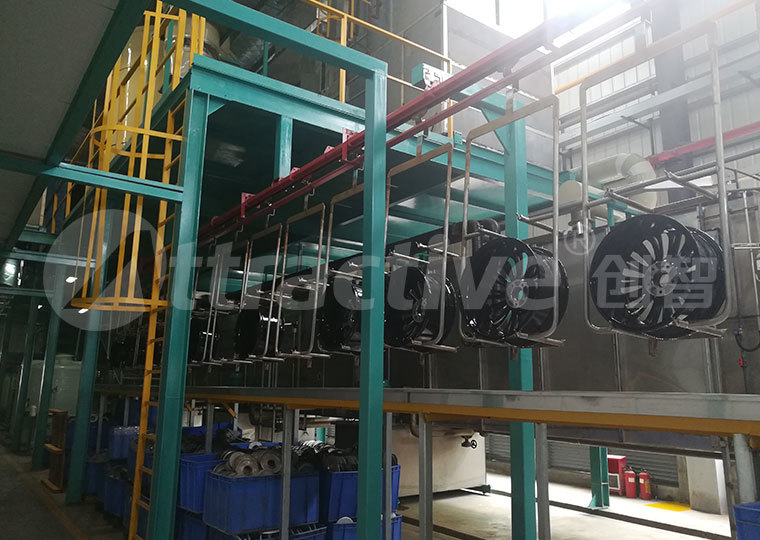

Stage 1: Precision Pretreatment - Laying the Foundation for Coating Adhesion
Pretreatment is the key prerequisite for determining coating adhesion and corrosion resistance, requiring multi-process cleaning and activation according to the surface characteristics of aluminum alloy wheels (easy oxidation, presence of stamping oil).
The core process of this stage is "pre-degreasing → main degreasing → water washing → chromium-free passivation → drying": pre-degreasing uses a low-temperature alkaline cleaning agent (temperature 40-50℃) to remove surface floating oil through spraying (pressure 0.2-0.3MPa); main degreasing is upgraded to a high-temperature and high-pressure process (temperature 55-65℃, pressure 0.4-0.5MPa), combined with a chelating degreasing agent to dissolve stubborn stamping oil and emulsion; the water washing link requires 3 stages of countercurrent rinsing to ensure that the degreasing agent residue is ≤50ppm; chromium-free passivation uses a zirconium-titanium-based treatment solution to form a 50-100nm nano-conversion film on the wheel surface, improving coating adhesion (cross-cut test reaches level 0); finally, hot air drying (temperature 80-100℃, time 15-20 minutes) is used to remove surface moisture and avoid pinholes in subsequent spraying.
In terms of equipment configuration, the pretreatment tank must be made of 316L stainless steel (acid and alkali corrosion resistance), equipped with an automatic slag removal system (slag discharge 1-2 times per hour) and an online bath concentration monitor to ensure stable parameters. For dead corners such as wheel bolt holes and spoke inner sides, a rotating spray arm (rotating speed 10-15r/min) must be installed to achieve blind-area-free treatment.
Electrostatic powder spraying is the core stage of converting powder coating into a functional coating, requiring precise control to ensure uniform coating thickness and no missed spraying.
This stage adopts a "triboelectric spraying + robot collaboration" mode: the core equipment is an automatic powder spray gun (voltage 60-90kV, current 50-80μA), which charges powder particles negatively through triboelectrification, and they are adsorbed on the wheel surface under the action of electrostatic attraction. For wheels of different sizes (14-22 inches), the system automatically adjusts the spray gun distance (250-300mm) and powder output (100-150g/min) through visual positioning, ensuring that the dry film thickness is controlled at 60-120μm (deviation ≤±5μm). For special-shaped structures (such as petal-shaped spokes), a 6-axis spraying robot (repeat positioning accuracy ±0.1mm) is configured, which scans the wheel contour with an infrared sensor and automatically generates a spraying path to avoid "over-spraying" or "missed spraying".
The spray booth must adopt a fully enclosed negative pressure design (wind speed 0.4-0.6m/s), and the inner wall is covered with an anti-static coating to prevent powder accumulation. At the same time, a powder fluidization bucket (fluidization air pressure 0.05-0.1MPa) is equipped to ensure that the powder is in a uniform fluidization state and avoid coating particles caused by agglomeration.
Stage 3: Efficient Powder Recycling - Reducing Costs and Protecting the Environment
Powder recycling is the key to realizing "green coating" and cost control, requiring the reuse of unadsorbed powder to improve material utilization.
This stage adopts a two-stage recycling system of "cyclone separation + filter cartridge filtration": the first stage separates large particle powder (particle size ≥50μm) through a cyclone separator (separation efficiency ≥95%) and transports it to the new powder silo, mixing with new powder at a ratio of 3:7; the second stage captures fine powder (particle size ≤50μm) through a high-precision filter cartridge (filtration accuracy 1-3μm) to avoid emission pollution. The recycling system is equipped with a differential pressure sensor, which automatically alarms and starts pulse backblowing (pressure 0.5-0.6MPa) when the filter cartridge resistance exceeds 1500Pa, ensuring stable recycling efficiency.
Through this system, the powder utilization rate can reach more than 98%, and the powder consumption per wheel is reduced from 80-100g in the traditional process to 50-60g, saving medium-sized wheel enterprises more than 2 million yuan in material costs every year. At the same time, powder emissions are reduced (≤5mg/m³), meeting environmental protection standards.
Curing is the key to converting powder coating into a dense protective film, requiring strict temperature control to ensure sufficient coating cross-linking and no performance defects.
This stage adopts a "segmented hot air circulation oven": the length of the oven is designed according to production capacity (usually 25-30m), divided into a preheating zone (120-150℃, time 5-8 minutes), a curing zone (180-200℃, time 20-25 minutes), and a cooling zone (≤60℃, time 5-10 minutes). The heating method preferably uses natural gas heating (energy consumption ratio 1:1.2), combined with a finned heat exchanger, so that the temperature uniformity deviation in the oven is ≤±3℃. For wheels with thick coatings, a "stepwise heating" curve is adopted to avoid coating blistering or cracking caused by internal and external temperature differences.
The oven outlet is equipped with a strong cooling fan (wind speed 3-5m/s) to quickly cool the wheel temperature to room temperature, preventing coating scratches during subsequent handling. At the same time, an oven temperature tracker is installed to record the curing temperature curve of each wheel in real time, facilitating quality traceability.
Quality inspection is the last line of defense to ensure the quality of wheel coating, requiring multi-dimensional testing to verify coating performance.
This stage sets 3 inspection checkpoints: the first is online film thickness detection (accuracy ±1μm), which detects 100% of the wheel coating thickness, and unqualified products are automatically diverted; the second is appearance inspection, which identifies coating particles, pinholes and other defects through a machine vision system (resolution 20 million pixels) (recognition rate ≥99%); the third is performance sampling inspection, which selects 3-5 wheels per batch for salt spray resistance test (ASTM B117 standard, no rust for 1000 hours), impact resistance test (no cracks under 50kg·cm impact) and hardness test (pencil hardness ≥2H).
Test data is uploaded to the MES system in real time to form a quality report for each batch, supporting subsequent process optimization. Through this inspection system, the wheel coating qualification rate can be increased from 85% in the traditional process to 99.5%, significantly reducing the after-sales claim rate.
Conclusion
The 5 key stages of modern car wheel powder coating are interlocking. From the basic guarantee of pretreatment to the quality interception of inspection, each step relies on the collaboration of precision equipment and scientific processes. As a manufacturer of coating line equipment, we can customize full-stage equipment solutions according to the enterprise's production capacity (50,000-500,000 pieces/year) and quality requirements, realizing "efficient, environmentally friendly and high-quality" wheel coating production, and helping enterprises improve their core competitiveness under the trend of automotive lightweighting.
