Solutions for High-Durability Coating on Aluminum Alloy Wheels
Author：
Chuangzhi Coating
Aluminum alloy wheels have become the mainstream choice in the automotive industry due to their lightweight and high-strength characteristics. However, their surfaces are susceptible to erosion from road salt, gravel impact, ultraviolet radiation and other factors, leading to problems such as coating peeling and loss of gloss. As the core of wheel performance guarantee, high-durability coatings must meet strict standards of salt spray resistance ≥1000 hours, impact resistance ≥50kg·cm, and weather resistance ≥5 years. As a professional manufacturer of coating line equipment, we provide full-life cycle protection for aluminum alloy wheels through a three-dimensional solution of "coating system innovation + precise process control + intelligent production line configuration".
Coating System Design: Multi-Layer Collaborative Protection Architecture
High-durability coatings need to build a composite system of "pretreatment layer + functional layer + decorative layer", with each layer working together to achieve both protection and aesthetics.
Thepretreatment layeris the foundation of adhesion, adopting a dual process of "chromium-free passivation + silane treatment": first, a nano-scale conversion film (thickness 50-100nm) is formed through chromium-free passivation to improve the corrosion resistance of the substrate; then a silane coupling agent (concentration 2-3%) is applied to bridge the metal and coating through chemical bonds, increasing adhesion to level 0 (cross-cut test). Compared with traditional chromate treatment, this process improves environmental protection by 90% while increasing neutral salt spray resistance to over 200 hours.
Thefunctional layerassumes the core protective role, with two recommended schemes: for high-end models, a ceramic composite coating (thickness 30-40μm) is used, with nano-alumina as aggregate (20-25% content), forming a dense structure through sol-gel method, with hardness reaching 4H (pencil hardness) and impact resistance increased to 80kg·cm; for mass-produced models, a modified polyester powder coating (thickness 60-80μm) is used, adding flake zinc powder (15-20% content) to form sacrificial anode protection, with salt spray resistance up to 1200 hours.
Thedecorative layerbalances texture and protection, using a "basecoat + clearcoat" combination: the basecoat uses weather-resistant acrylic resin (adding 2-3% ultraviolet absorber) to ensure no obvious fading for 5 years; the clearcoat uses highly cross-linked polyurethane (solid content ≥65%) with thickness 20-30μm, gloss retention rate (500 hours xenon lamp aging) ≥90%, and hydrophobic properties (contact angle ≥90°) to reduce stain adhesion.
Precise Process Control: Ensuring Coating Performance Stability
The realization of high-durability coatings depends on millimeter-level control of the coating process, requiring parameter optimization from pretreatment to curing.
Surface pretreatmentmust achieve Sa2.5 cleanliness: oxide scales and oil stains are removed through high-pressure spraying (pressure 0.3-0.5MPa), with water temperature controlled at 50-60℃ to enhance degreasing effect; sandblasting uses 120-150 mesh white corundum at a spray angle of 75°, resulting in surface roughness of Ra1.6-3.2μm to provide ideal anchor points for the coating. The spraying process must be entered within 4 hours after treatment to avoid secondary oxidation.
Electrostatic sprayingparameters determine coating uniformity: powder coatings use triboelectric spraying (voltage 60-80kV, current 50-80μA), with powder output controlled at 100-150g/min and gun distance maintained at 250-300mm; liquid coatings use air-assisted electrostatic spraying with atomization pressure 0.15-0.2MPa and electrostatic voltage 40-60kV, ensuring wet film thickness deviation ≤±5μm. For hidden parts such as wheel bolt holes and spoke inner sides, special rotating spray guns are equipped to achieve 100% coverage.
Curing processrequires precise temperature curve control: powder coatings use stepwise heating (120℃/5min→180℃/20min) to avoid bubbles; liquid coatings use constant temperature curing (140±5℃, 30min) to ensure cross-linking degree ≥95%. The curing oven uses hot air circulation (wind speed 1-1.5m/s) with temperature difference controlled within ±3℃, and internal cleanliness reaching class 100,000 to prevent particle contamination.
High-durability coatings must pass multi-level testing to ensure performance compliance, building dual guarantees of "online monitoring + laboratory verification".
Online detectioncovers key parameters: eddy current thickness gauge detects passivation film thickness (50-100nm) after pretreatment; laser thickness gauge (accuracy ±1μm) performs 100% dry film thickness detection after spraying; gloss meter (60° angle) and hardness tester monitor surface quality in real-time after curing, with data automatically uploaded to MES system to form traceability files.
Laboratory verificationsimulates extreme working conditions: salt spray test according to ASTM B117 standard (5% NaCl solution, 35℃) shows no blistering or rusting after 1000 hours; stone impact resistance test (ISO 20567-1) with 50g steel balls (5mm diameter) at 80km/h results in coating damage area ≤5%; weather resistance test (SAE J2527) after 2000 hours of xenon lamp aging shows color difference ΔE ≤1.5 and gloss loss rate ≤10%.

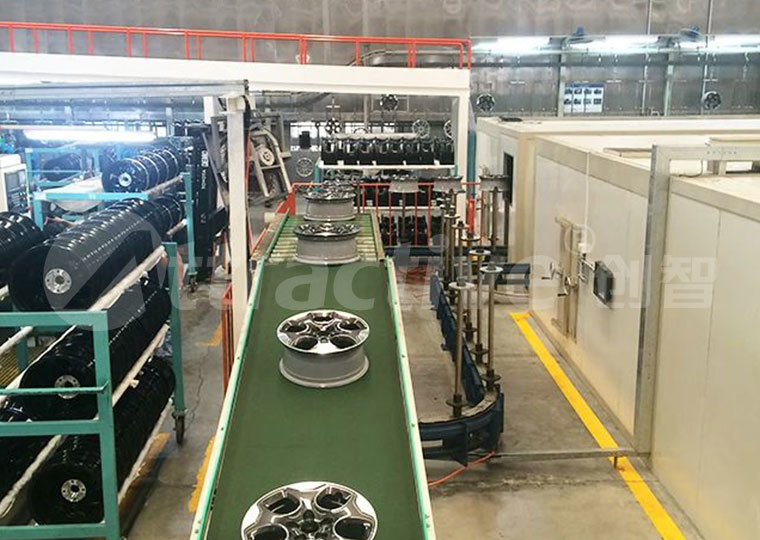

High-durability coating production lines need customized configurations according to capacity and process requirements, with key equipment including:
Pretreatment line: multi-tank spraying system (length 15-20m) equipped with automatic slag removal device and bath circulation system (5 cycles per hour) to ensure treatment uniformity;

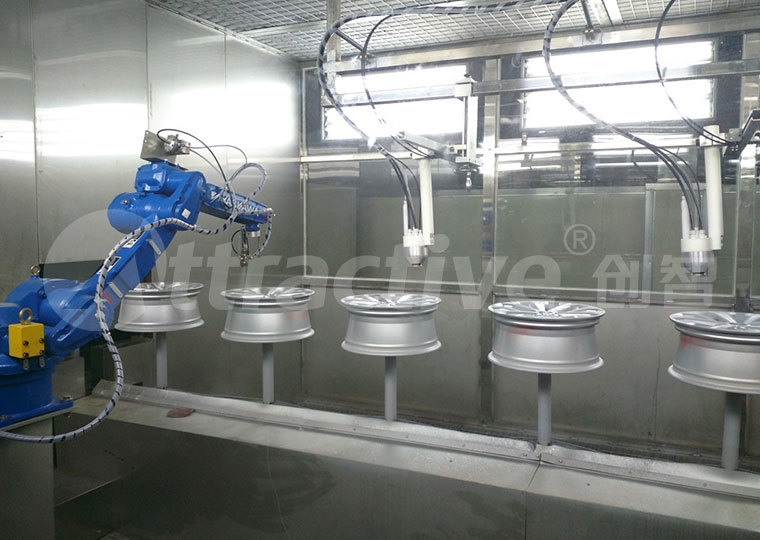

Spray booth: fully enclosed negative pressure design (wind speed 0.4-0.6m/s) equipped with 6-axis spraying robots (repeat positioning accuracy ±0.1mm) and powder recovery system (recovery rate ≥98%);
Curing oven: zone-controlled temperature design (length 25-30m) using natural gas heating (energy consumption ratio 1:1.2) with waste heat recovery device (30% energy saving);
Testing station: integrated with film thickness, hardness, adhesion and other testing equipment, supporting automatic judgment and diversion of unqualified products.
Application Case: Effect of Wheel Coating Upgrade for a Automaker
After adopting this solution, a new energy vehicle company achieved significant improvements in wheel coating performance: salt spray resistance time extended from 800 hours to 1200 hours, after-sales claim rate decreased by 72%; coating hardness increased from 3H to 4H, impact resistance improved by 50%; wheel appearance retention rate reached over 95% during vehicle warranty period, and user satisfaction increased by 38%. Meanwhile, through powder recycling and energy optimization, the coating cost per wheel was reduced by 15%.
Conclusion
The realization of high-durability coatings for aluminum alloy wheels is the perfect combination of materials science and coating technology. Its core lies in endowing wheels with long-term protection capabilities on the basis of lightweight through multi-layer protection system design, precise process control and intelligent detection guarantees. As equipment manufacturers, we can provide full-process services from coating formula optimization to turnkey production lines according to customers' capacity scales and performance requirements, helping enterprises build core competitiveness in wheel performance under the trend of new energy vehicle lightweighting.
